TCP Working: 3-Way Handshake & Reliable Communication Explained

Ever wondered how your messages reach WhatsApp servers correctly, or how Netflix streams video without missing frames? The answer lies in TCP – the backbone of reliable internet communication.

In this guide, I'll break down TCP from the ground up, explaining exactly how computers establish connections, transfer data reliably, and gracefully close connections.

Why Do We Need TCP?

Imagine sending a letter through the postal system. You put it in a mailbox and... hope it arrives. No confirmation, no tracking, no guarantee of delivery order.

The Internet Without Rules

Without protocols like TCP, data packets could:

Get lost in transit and never arrive
Arrive out of order (packet 3 before packet 1)
Arrive corrupted with errors
Arrive multiple times (duplicates)

TCP (Transmission Control Protocol) solves all these problems. It's like sending registered mail with:

Delivery confirmation
Sequential numbering
Error checking
Automatic resending if lost

What is TCP?

TCP is a connection-oriented protocol that provides reliable, ordered, and error-checked delivery of data between applications.

TCP vs UDP: Quick Comparison

Feature	TCP	UDP
Connection	Required (handshake)	Not required
Reliability	Guaranteed delivery	Best effort
Order	Packets arrive in order	No ordering
Speed	Slower (more overhead)	Faster
Use Cases	Web, Email, File Transfer	Gaming, Video Calls, DNS

Info

Think of TCP like a phone call – you establish a connection, have a conversation, and hang up. UDP is like shouting across a room – fast, but no guarantee they heard you correctly.

The TCP 3-Way Handshake

Before any data is exchanged, TCP establishes a connection using a 3-way handshake. This ensures both parties are ready to communicate.

TCP 3-Way Handshake showing SYN, SYN-ACK, and ACK between Client and Server TCP 3-Way Handshake showing SYN, SYN-ACK, and ACK between Client and Server

The Three Steps

Step 1: SYN (Synchronize)

The client initiates the connection by sending a SYN packet:

Client → Server
"Hey, I want to talk! My sequence number starts at 100."

SYN, SEQ=100

Step 2: SYN-ACK (Synchronize-Acknowledge)

The server responds with its own SYN and acknowledges the client's request:

Server → Client
"Got it! I'm ready too. My sequence number starts at 300.
 I'm expecting your next byte to be 101."

SYN-ACK, SEQ=300, ACK=101

Step 3: ACK (Acknowledge)

The client confirms receipt and the connection is established:

Client → Server
"Perfect! I got your message. Expecting byte 301 from you."

ACK, SEQ=101, ACK=301

Real-World Analogy

Think of it like a phone call:

SYN: "Hello?" (caller initiates)
SYN-ACK: "Hello! Yes, I can hear you." (receiver confirms)
ACK: "Great, I can hear you too!" (caller confirms)

Now you can start talking!

Why Three Steps?

Step 1: Client proves it can send
Step 2: Server proves it can send AND receive
Step 3: Client proves it can receive

Without all three, we can't be sure both directions work!

Step through the handshake packet by packet:

1/4

Step 1. The client sends SYN with a random starting sequence number. Random, not zero, so old or forged packets cannot be replayed.

Understanding Sequence Numbers

Sequence numbers are the backbone of TCP's reliability. Each byte of data gets a unique number.

How It Works

// Simplified example
const data = "Hello"; // 5 bytes

// TCP breaks this into segments
Segment 1: "Hel" → SEQ=100 (bytes 100-102)
Segment 2: "lo"  → SEQ=103 (bytes 103-104)

The receiver uses sequence numbers to:

Reorder packets that arrive out of order
Detect missing packets (gaps in sequence)
Eliminate duplicates (same sequence number twice)

How Data Transfer Works

Once the handshake is complete, data flows between client and server with acknowledgments confirming receipt.

TCP data transfer showing sequence numbers and acknowledgments TCP data transfer showing sequence numbers and acknowledgments

The Flow

1. Client sends: SEQ=100, Data="Hello" (5 bytes)
2. Server receives and replies: ACK=105 (expecting byte 105 next)
3. Client sends: SEQ=105, Data="World" (5 bytes)
4. Server replies: ACK=110

Acknowledgment Rules

The ACK number tells the sender: "I've received everything up to this byte. Send me the next one."

ACK = Last received SEQ + Data length

If received SEQ=100 with 5 bytes:
   ACK = 100 + 5 = 105

Cumulative ACKs

TCP uses cumulative acknowledgments. ACK=105 means "I have all bytes up to 104." If the sender gets ACK=105, it knows bytes 100-104 were received successfully.

How TCP Ensures Reliability

TCP guarantees every byte arrives correctly through several mechanisms:

1. Acknowledgments

Every packet must be acknowledged. No ACK = sender assumes it's lost.

2. Timeouts & Retransmission

If no ACK arrives within a timeout period, the sender retransmits the packet.

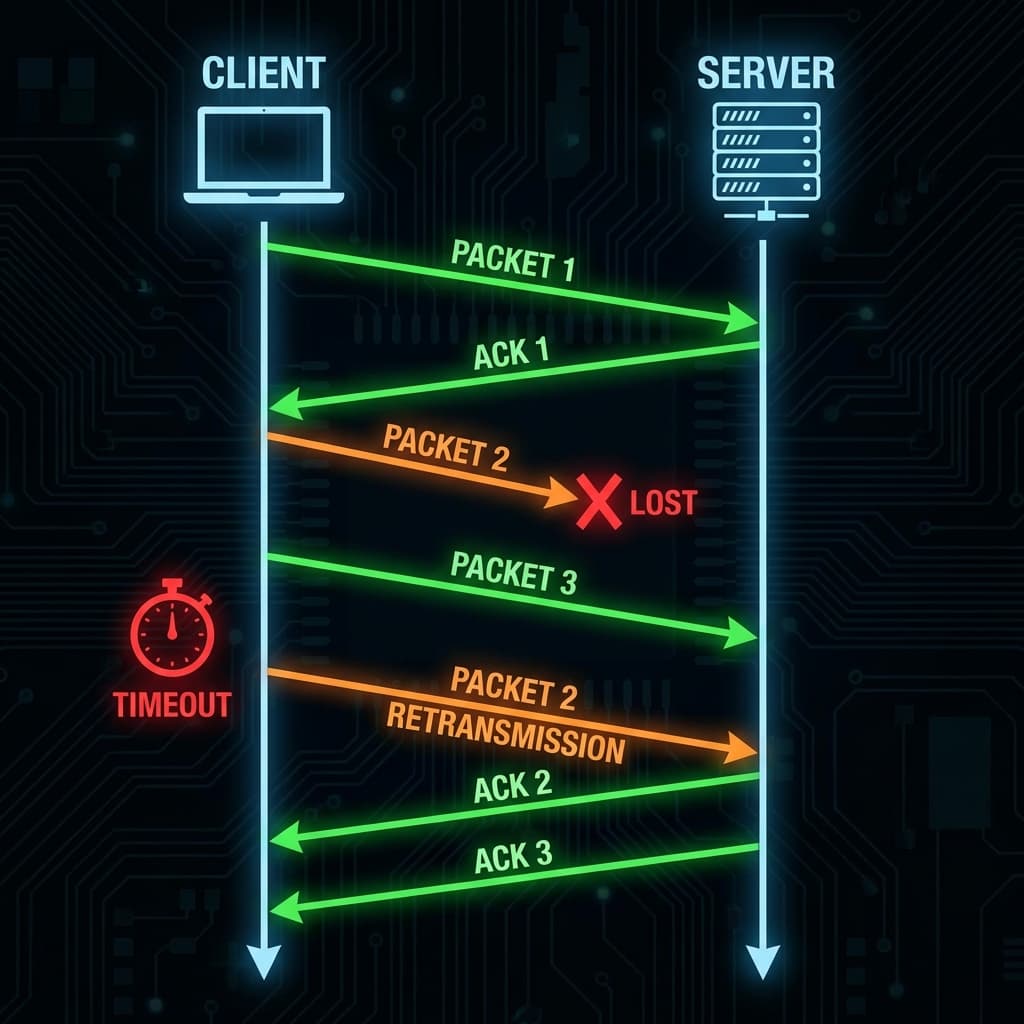

TCP packet loss and retransmission showing timeout and resend TCP packet loss and retransmission showing timeout and resend

1. Sender sends Packet 1 → ACK received ✓
2. Sender sends Packet 2 → LOST ✗
3. Sender sends Packet 3 → Server can't process (gap)
4. Timeout expires...
5. Sender retransmits Packet 2 → ACK received ✓
6. Server now processes Packets 2 and 3

Timeout Calculation

TCP dynamically calculates timeout based on network conditions. High latency networks get longer timeouts to avoid premature retransmissions.

3. Checksums

Every TCP segment includes a checksum – a mathematical fingerprint of the data. If the calculated checksum doesn't match, the packet is discarded.

Data: "Hello"
Checksum: 0x4F2A (calculated from data)

Receiver calculates checksum on received data.
If it matches 0x4F2A → Data is intact ✓
If it differs → Data is corrupted, discard ✗

4. Flow Control

TCP prevents the sender from overwhelming the receiver using a sliding window.

Receiver: "My buffer has room for 10,000 bytes"
Sender: "OK, I'll only send up to 10,000 bytes before waiting"

[Window Size = 10,000]

5. Congestion Control

TCP also monitors the network itself, slowing down if it detects congestion.

Algorithm	Purpose
Slow Start	Start with small window, increase exponentially
Congestion Avoidance	Increase linearly after threshold
Fast Retransmit	Retransmit on 3 duplicate ACKs
Fast Recovery	Stay in congestion avoidance mode

Ensuring Order and Correctness

Ordering

Packets may arrive out of order due to different network paths:

Sent: [1] [2] [3] [4] [5]
Arrives: [1] [3] [5] [2] [4]

TCP uses sequence numbers to reorder them:

Buffer after reordering: [1] [2] [3] [4] [5] ✓

Correctness

Multiple layers of verification:

Sequence numbers → Correct ordering
Checksums → Data integrity
ACKs → Delivery confirmation
Retransmission → Handle losses

How TCP Connections Are Closed

Just as connections are established with a handshake, they're closed gracefully with a 4-way handshake (sometimes called FIN handshake).

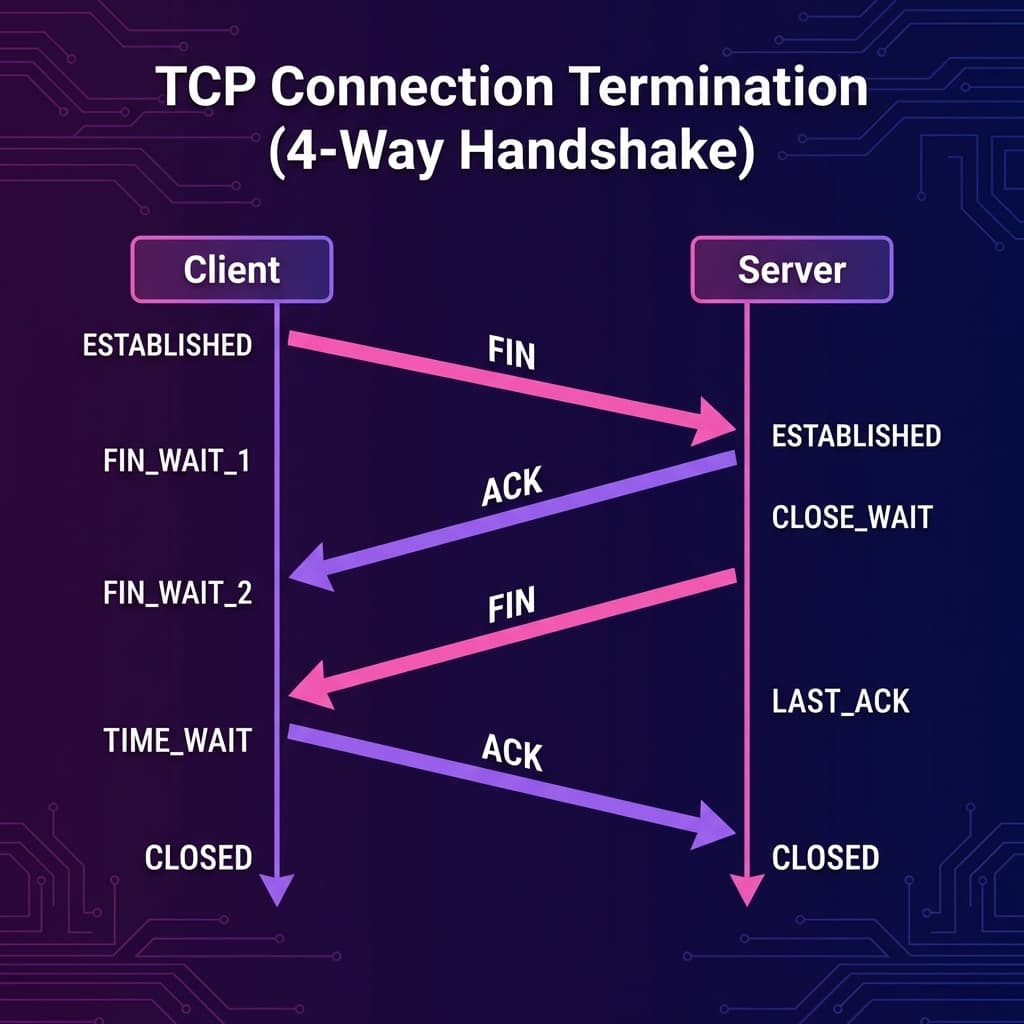

TCP connection termination 4-way handshake with FIN and ACK

The Four Steps

Step 1: Client Sends FIN

Client → Server
"I'm done sending data."

FIN, SEQ=400

Client enters FIN_WAIT_1 state.

Step 2: Server Sends ACK

Server → Client
"Got it, I acknowledge your finish request."

ACK=401

Client moves to FIN_WAIT_2. Server is in CLOSE_WAIT.

Step 3: Server Sends FIN

Server → Client
"I'm also done. Closing my side."

FIN, SEQ=500

Server enters LAST_ACK state.

Step 4: Client Sends ACK

Client → Server
"Acknowledged. Connection fully closed."

ACK=501

Client enters TIME_WAIT (waits 2×MSL), then CLOSED. Server moves to CLOSED after receiving ACK.

Why TIME_WAIT?

The client waits in TIME_WAIT for about 2 minutes to ensure:

The final ACK reaches the server
Any delayed packets are cleared from the network

This prevents old packets from a closed connection being confused with a new one.

TCP Connection Lifecycle Summary

Phase	Actions
Establish	3-way handshake (SYN → SYN-ACK → ACK)
Transfer	Data segments with SEQ/ACK
Close	4-way handshake (FIN → ACK → FIN → ACK)

CLOSED
   │
   │ SYN
   ▼
SYN_SENT ────SYN-ACK────► ESTABLISHED
                              │
                              │ (data transfer)
                              │
                          FIN │
                              ▼
                         FIN_WAIT_1
                              │ ACK
                              ▼
                         FIN_WAIT_2
                              │ FIN
                              ▼
                         TIME_WAIT
                              │ (wait 2×MSL)
                              ▼
                           CLOSED

Practical Example: Loading a Webpage

Let's trace TCP when you visit https://example.com:

1. DNS resolves example.com → 93.184.216.34

2. TCP 3-Way Handshake:
   Browser → Server: SYN
   Server → Browser: SYN-ACK
   Browser → Server: ACK

3. TLS Handshake (for HTTPS)

4. HTTP Request/Response over TCP:
   Browser → Server: GET /index.html (SEQ=1000)
   Server → Browser: ACK=1050, 200 OK, HTML data
   Browser → Server: ACK=5000

5. Connection Close:
   Browser → Server: FIN
   Server → Browser: ACK
   Server → Browser: FIN
   Browser → Server: ACK

Key Takeaways

Remember These

3-way handshake establishes a connection (SYN → SYN-ACK → ACK)
Sequence numbers track every byte of data
Acknowledgments confirm receipt
Timeouts & retransmission handle packet loss
Checksums verify data integrity
4-way handshake closes connections gracefully

Quick Reference

Term	Meaning
SYN	Synchronize – initiates connection
ACK	Acknowledge – confirms receipt
FIN	Finish – closes connection
SEQ	Sequence number – byte position
MSL	Maximum Segment Lifetime

Conclusion

TCP is the unsung hero of the internet. Every time you:

Load a webpage
Send an email
Download a file
Make an API call

TCP is working behind the scenes, ensuring your data arrives completely, correctly, and in order.

Understanding TCP makes you a better developer because you can:

Debug network issues more effectively
Optimize application performance
Make informed decisions about TCP vs UDP
Ace technical interviews!

The next time you hit Send on a message, remember the elegant dance of SYNs, ACKs, and FINs making it all possible.

Happy networking! 🌐

Have questions about TCP or networking? Drop a comment or reach out on Twitter @srtenginamath!
